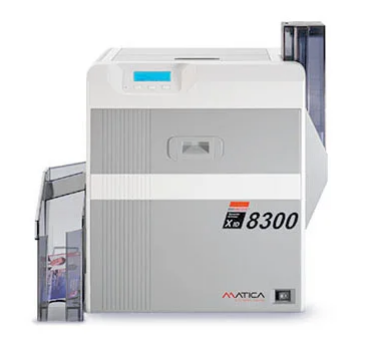

XID8300 Retransfer Card Printer

The flexible solution for high quality smart card personalization
The industrial quality, single or double-sided XID8300 Retransfer Card Printer is equipped with various optional modules such as bend remedy, flipper, and magstripe or smart card encoding. Built from our industry proven and extremely reliable XID retransfer engine, the XID8300 comes ready to tackle the most challenging card projects.



FEATURES:
* Space saving internal installation of optional modules such as bend remedy, flipper, and encoding modules
* Electronic security locks (driver driven) for front door and card hopper for utmost security
* Printer Look-Up Tables and pre-selection of 5 Different card type profiles
* Automatic ribbon detection and low ribbon warning
* Auto Cleaning notification
* Removable cleaning roller unit for long-term usage and reliable, steady card cleaning
* Easy replacement of ink ribbons and Retransfer Film via front loading system
* Detachable card hopper for 200 cards
* Built-in operating panel with LCD for convenient set-up and operation
* Print head has no conduct with card, minimizing risk of damage
* Field upgradeable encoder options
* Intuitive, in-house developed printer driver for utmost user convenience and productivity
* USB 2.0 and Ethernet ports for easy connection with PC or network



SPECIFICATIONS OF XID8300
Print Method: Dye-Sublimation retransfer
Print Mode: Single-or double-sided (optional) over-the-edge retransfer printing
Print Speed: Up to 100 cards per hour (single-sided)
Print Resolution: 300 dpi
Card Types: PVC, Composite PVC, ABS, PET, and Polycarbonate Cards of ISO ID-1/CR-80 size, 85.60 x 53.98 mm
Card Thickness: 0.25 - 1.02 mm (hopper adjustment required)
Input Hopper Capacity: 200 cards (0.76 mm)
Output Hopper Capacity: 100 cards and Ethernet
Operating System Support: Windows 2000, Windows XP, Windows Vista, Windows 7
Printer Dimensions: 343 x 322 x 360 mm (WxDxH)
Weight: 13.9 kg (excluding optional built-in items)
Power Supply: 100/120V and 220/240 V, 50/60 Hz FCC, CE, UL, GOST-R, and CCC approved
Operating Environment: 15°C to 30°C, 35% to 70% non-condensing humidity
